Description

Specification: (User Manual)

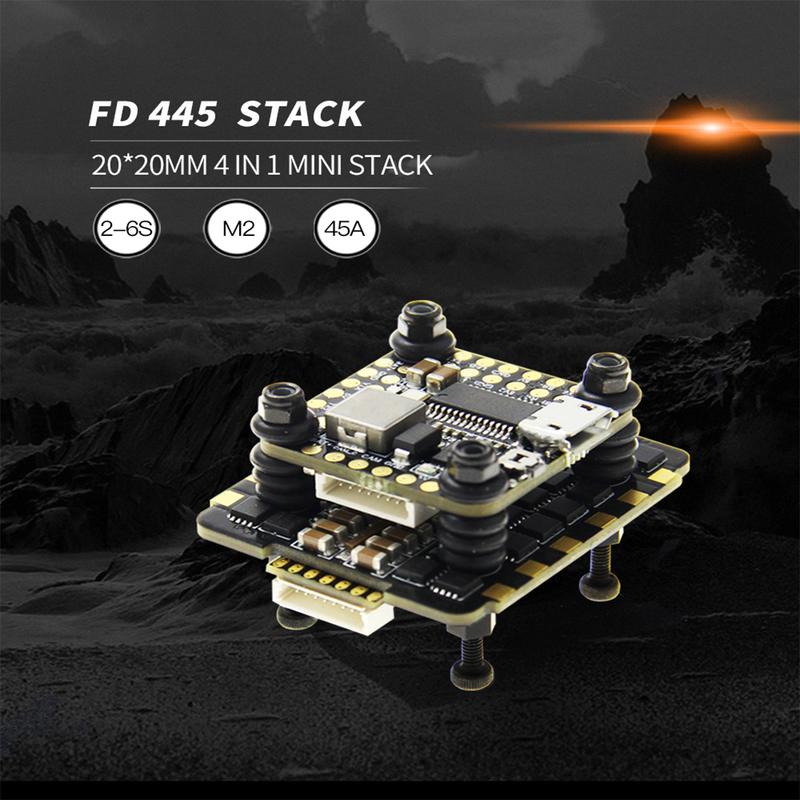

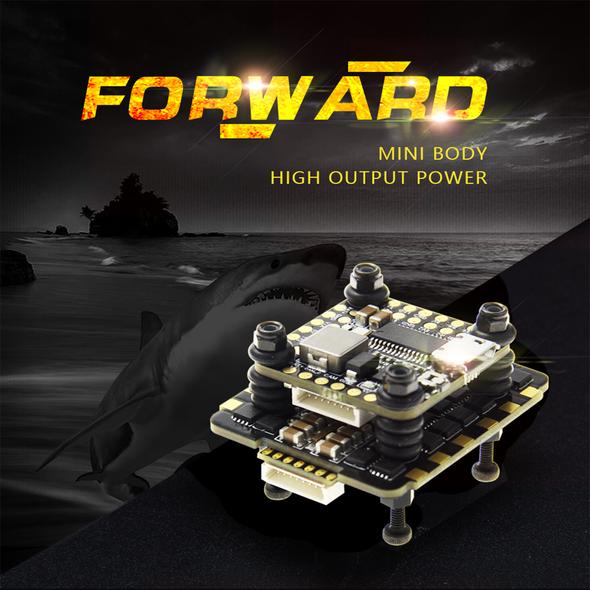

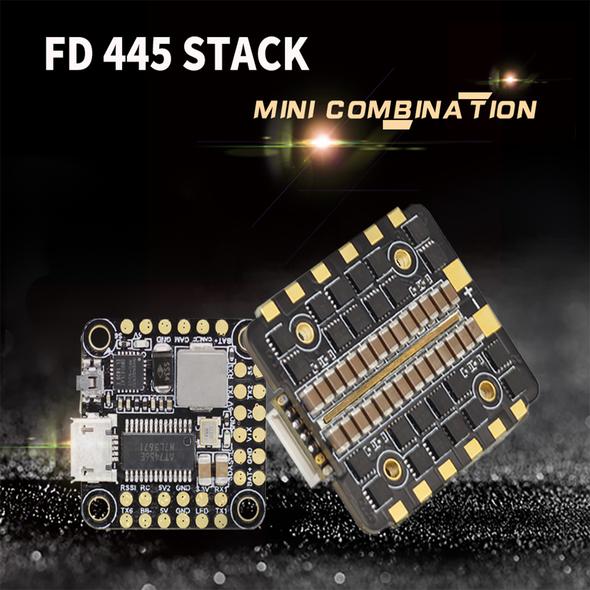

Model: Forward FD445 Stack
Usage: for 110mm-1000mm Frame Kit

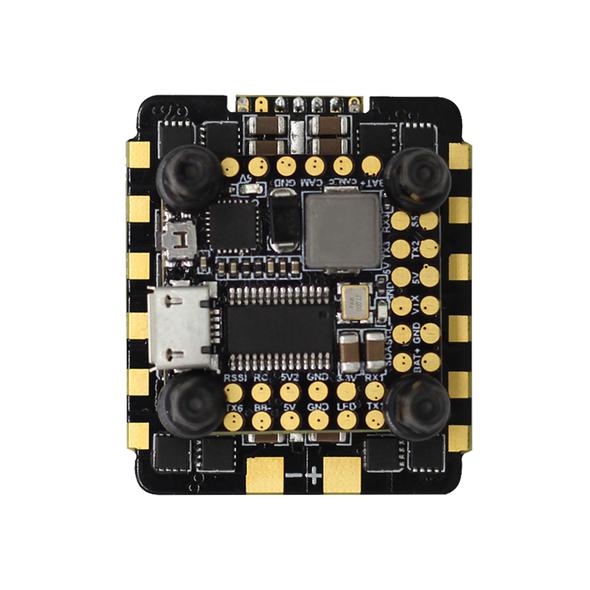

1.Forward F4 MINIFlight Control 、
CPU: STM32F405R6T6
MPU: MPU6000-SPI
Input Voltage: 2-6S Lipo
Firmware: Betaflight OMNIBUSF4V6
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25.0×25.0mm board
Installing Hole:20x20mm,M2
Weight:4.7g

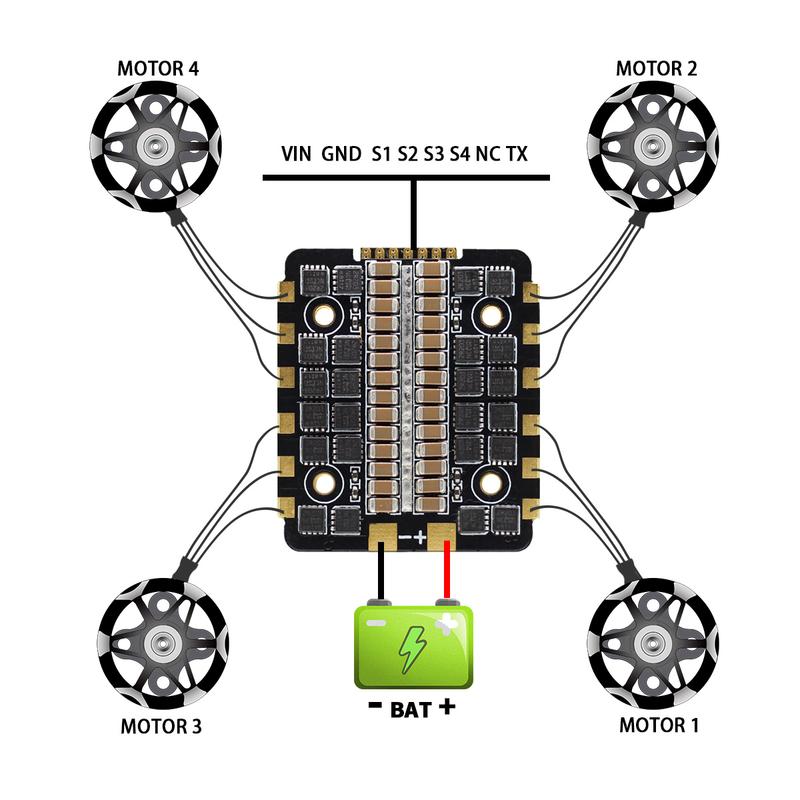

2. Forward 45A 4in1 MINI ESC
CPU:STM32F051
Input Voltage: 2-6S Lipo battery
Constant Current: 45A-4S/35A-6S
Peak Current: 55A(5s)
BEC Ouput: NO
Firmware: BLHELI_32
Size: 31.7×36.5mm
Installing Hole:20x20mm,M2
Weight: 10.8g
