Description

Specification: (User Manual)

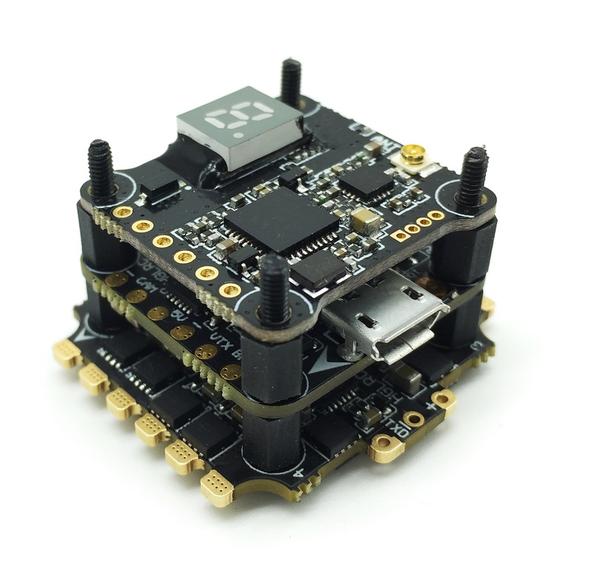

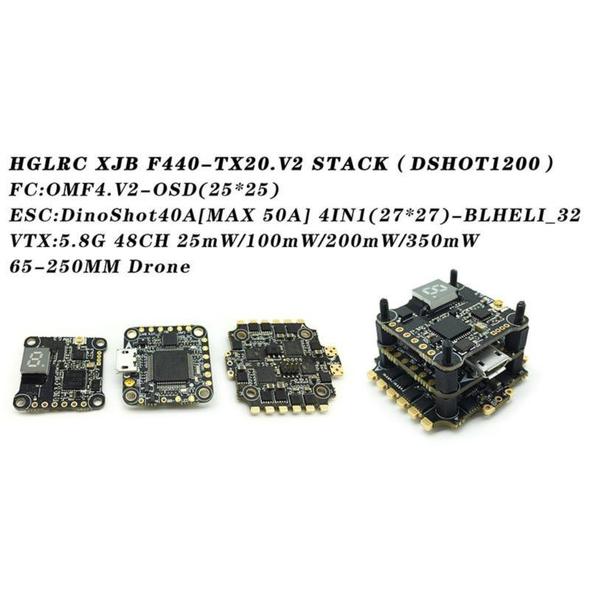

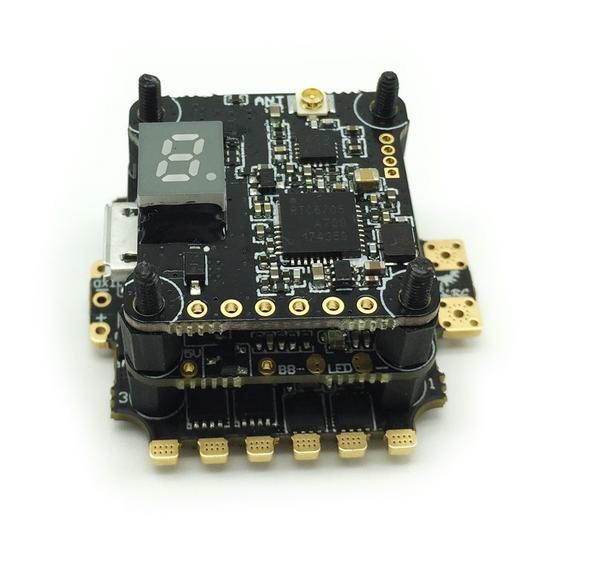

Model: HGLRC XJB F440-TX20.V2
Weight: 11.4g
Usage: for 65mm-250mm Frame Kit

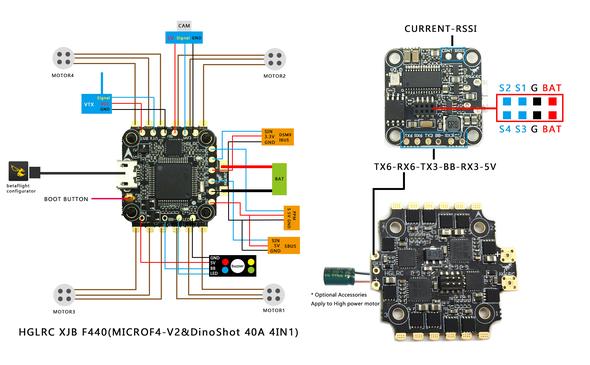

Micro F4 Flight Control Board ( D-Shot Version)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K.
Black Box: Flash 16M
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25x25mm board, 20mm mounting holes (M2)
Weight:3.7g
Support SBUS/PPM/DSMX receiver

40A BL32_40A 3-4S ESC BLHeli_32
Input Voltage: 3-4S Lipo battery
Constant Current: 40A
Peak Current: 50A
BEC Ouput: NO
Firmware:32bit ESC with BLHELI_32 firmware
Size: 27x27mm (main board)
32x34mm (including pad)
Installing Hole:20x20mm,M2
Weight: 5.2g
CPU:STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol: DSHOT1200/600/300/150/Oneshot125/42,MultiShotDamped mode

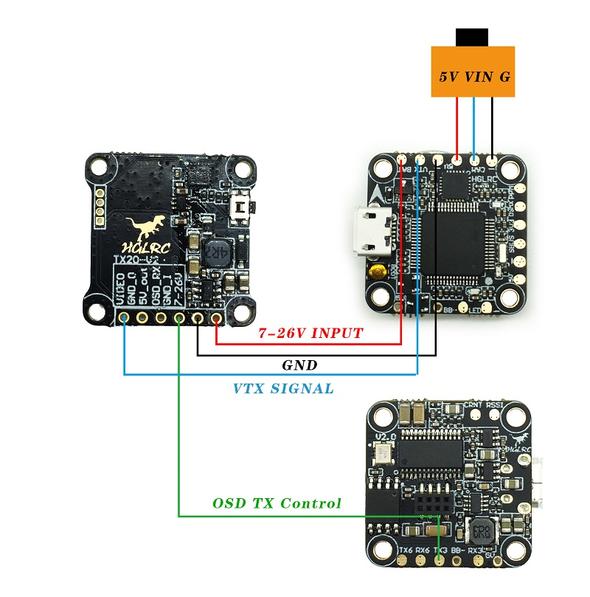

HGLRC XJB TX20.V2 Mini FPV Transmitter
Output power: PIT/25mW/100mW/200mW/350mW switchable
Control mode:BFOSD control(RX)/button
BAT: 7-26V,BEC 5V-1A
240mA—-350mW
Video system: NTSC/PAL
Antenna: IPEX
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
Size: 24*24mm(L*W),Hole:20*20mm
Weight: 2.5g

Package Included:
1x HGLRC F4 AIO OSD BEC Flight Control Board
1x HGLRC 40A BL32_40A 3-4S ESC BLHeli_32
1x HGLRC XJB TX20.V2 Mini FPV Transmitter
